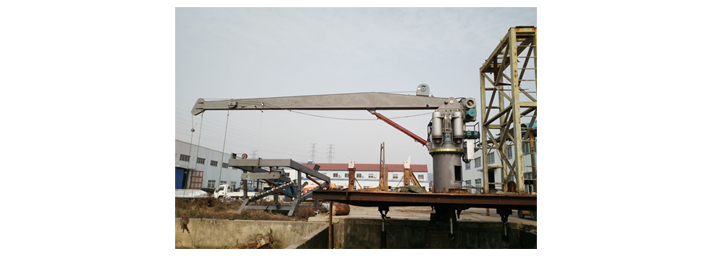

Craft and amplitude of sundry crane
|
|
|
Type |
B21/14 |
|
1 Craft crane parts |
|
Safe working load |
21KN |
|
Rotary load |
14KN |
|
Working radius |
¨Q8.5m |
|
For the turning Angle of accumulator |
110¡ã |
|
For the turning Angle of the pump station |
330¡ã |
|
Boat speed |
¡Ý18 m/min |
|
Landing speed |
40¡«60 m/min |
|
Drum rope capacity |
25 m |
|
Wire rope specifications |
16mm |
|
Winch motor |
5.5/6.3KW |
|
Pump motor |
15KW |
|
Maximum working tilt (trim/roll) |
20¡ã/10¡ã |
|
2 Lifting part |
|
Safe working load |
2t |
|
Hoisting speed |
¨R10m/min |
|
Wire rope specifications |
14mm |
|
Working radius |
2.6-10m |
|
Drum rope capacity |
25 m |
|
Maximum working tilt (trim/roll) |
5¡ã/2¡ã | |
| |
|
|
| |
|
